profile Details

WSL-C

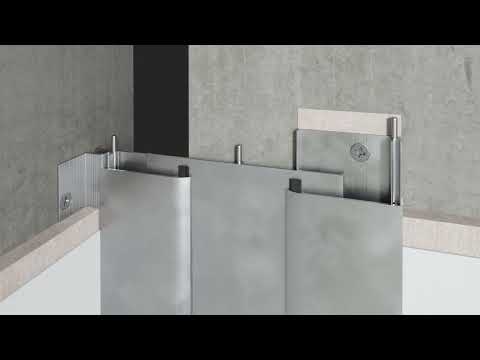

The WSL-C Wall-to-Wall (Corner) Expansion Profile is a versatile solution meticulously crafted to effectively cover expansion joints in diverse applications.
  • Product Model WSL-C
  • Product Type Wall (Corner shape) Expansion Joint Cover
  • Material Aluminum Alloy 6063 T6
  • Finish Mill finish
# Request
information            # Download
Datasheet
#
Technical
Details
Technical
Drawings

Technical Details

Code Gap width
A (mm)		 Visible width
B (mm)		 Installation height
C (mm)		 Total Movement
WSL 25C 25 135 18 45mm (+30-15)
WSL 35C 35 145 18 55mm (+30-25)
WSL 50C 50 160 18 80mm (+40-40)
WSL 75C 75 185 18 80mm (+40-40)
WSL 100C 100 263 18 130mm (+65-65)
WSL 150C 150 313 18 130mm (+65-65)
WSL 200C 200 363 18 130mm (+65-65)
WSL 250C 250 413 18 130mm (+65-65)

Technical Drawings

wsl-c

wsl-c
wsl-c

Feature and benefits

#

Versatile Design

Suitable for various expansion joint applications.

#

Easy Assembly

Simple setup with corner cover plate and upper profiles.

#

Customizable

Available in various sizes to accommodate different expansion joint dimensions.

#

Durable

Constructed from high-quality materials for long-lasting performance.

#

Corrosion Resistance

Resistant to rust and corrosion.
