| Code | Gap width A (mm) |
Visible width B (mm) |
Installation height C (mm)) |
Installation width E (mm) |
Total movement (mm) |
Siesmic movement (mm) |
|---|---|---|---|---|---|---|
| SYRR 50C | 50 | 172 | 25 | 197 | 40mm (+20-20) | 95mm (+50-45) |
| SYRR 100C | 100 | 222 | 25 | 247 | 40mm (+20-20) | 115mm (+60-55) |
| SYRR 150C | 150 | 272 | 25 | 297 | 40mm (+20-20) | 165mm (+60-105) |
| SYRR 200C | 200 | 322 | 25 | 347 | 40mm (+20-20) | 215mm (+60-155) |
| SYRR 250C | 250 | 372 | 25 | 397 | 40mm (+20-20) | 265mm (+60-205) |
| SYRR 300C | 300 | 422 | 25 | 447 | 40mm (+20-20) | 315mm (+60-255) |
| SYRR 400C | 400 | 522 | 25 | 547 | 40mm (+20-20) | 415mm (+60-355) |

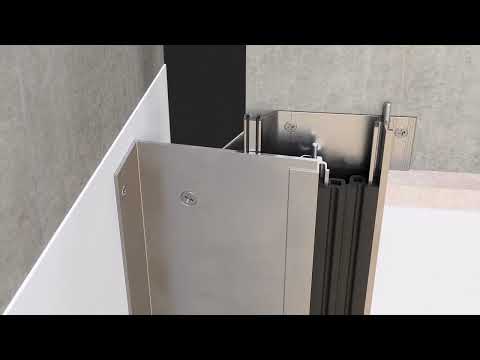

Designed to accommodate horizontal and vertical movements caused by seismic activity.
Made from high-strength aluminum alloy for exceptional durability and long service life.
Quick and hassle-free installation process with clear instructions provided.
The low-profile design, coupled with multiple gasket color options, seamlessly enhances aesthetics while preserving functionality.
Engineered with corrosion-resistant properties, this expansion joint cover is well-suited for indoor and outdoor applications.
