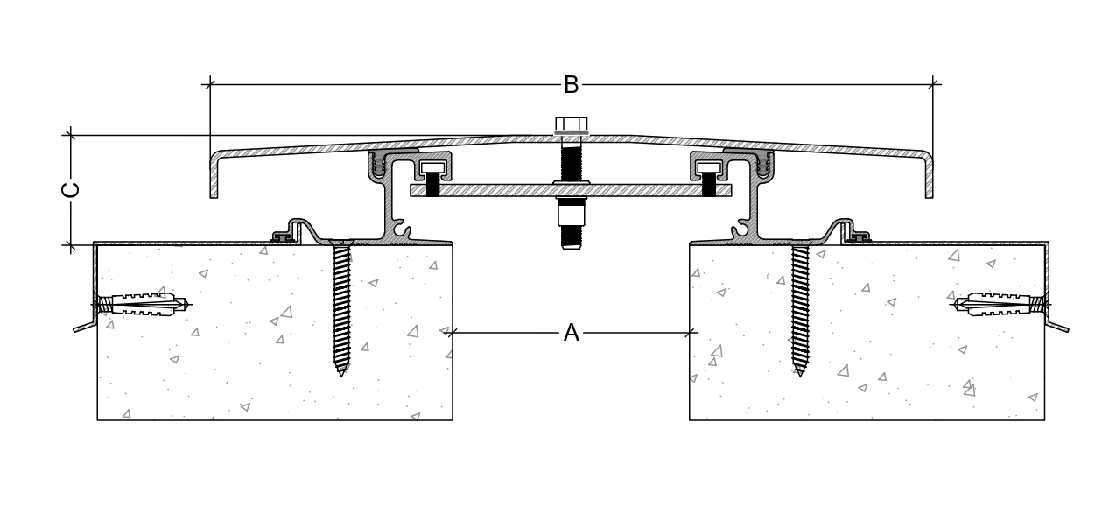

| Code | Gap width A (mm) |
Cover width B (mm) |
Installation height C (mm) |
Total movement (mm) |
Load Capacity |
|---|---|---|---|---|---|
| JR 25 | 25 | 230 | 50 | 45mm (+30-15) | Not applicable |
| JR 35 | 35 | 240 | 50 | 65mm (+40-25) | Not applicable |
| JR 50 | 50 | 255 | 50 | 90mm (+50-40) | Not applicable |
| JR 75 | 75 | 280 | 50 | 135mm (+75-60) | Not applicable |
| JR 100 | 100 | 305 | 50 | 180mm (+100-80) | Not applicable |
| JR 150 | 150 | 355 | 50 | 250mm (+120-130) | Not applicable |
| JR 200 | 200 | 407 | 50 | 305mm (+125-180) | Not applicable |
| JR 250 | 250 | 457 | 50 | 355mm (+125-230) | Not applicable |
| JR 300 | 300 | 507 | 50 | 405mm (+125-280) | Not applicable |
| JR 400 | 400 | 607 | 50 | 505mm (+125-380) | Not applicable |

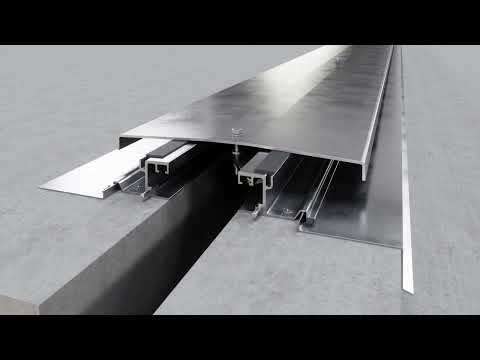

Designed to accommodate horizontal and vertical movements caused by seismic activity.
Specially designed for water-tight connections, preventing water infiltration for enhanced durability.
Structurally designed to seamlessly accept aluminum flashing, providing additional weather protection
Made from high-strength aluminum alloy for exceptional durability and long service life.
Equipped with a multi-rubber gasket system to ensure a smooth and water-tight connection between profile parts.
Quick and hassle-free installation process with clear instructions provided.
