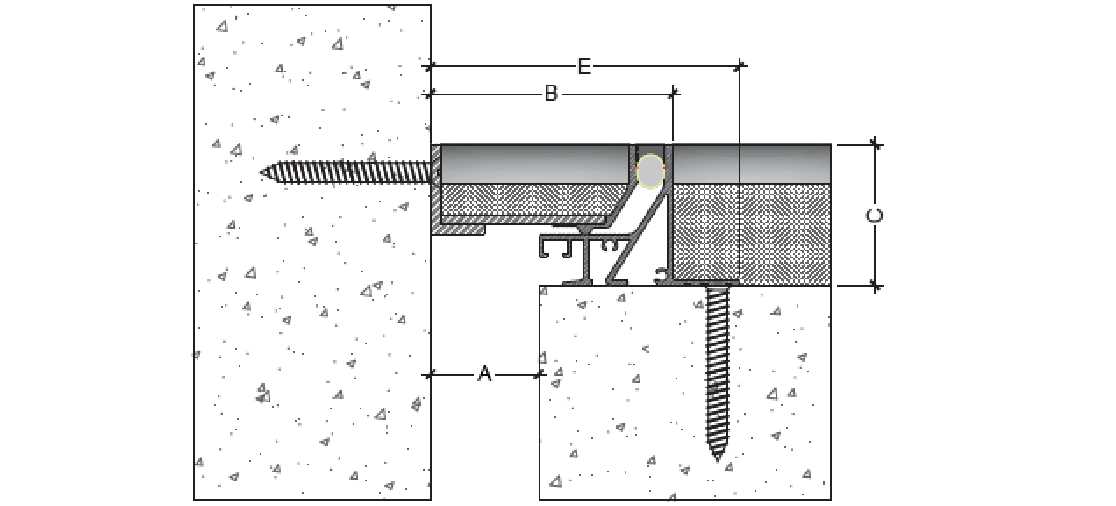

| Code | Gap width A (mm) |
Visible width B (mm) |
Installation height C (mm) |
Installation Width E (mm) |
Thermal movement (mm) |
Siesmic movement (mm) |
Load Capacity |
|---|---|---|---|---|---|---|---|
| ESPS 25C | 25 | 87 | 65 | 118 | 16.5mm (+10-6.5) | 26.5mm (+20-6.5) | Pedestrian |
| ESPS 35C | 35 | 97 | 65 | 128 | 20mm (+10-10) | 30mm (+20-10) | Pedestrian |
| ESPS 50C | 50 | 112 | 65 | 143 | 20mm (+10-10) | 40mm (+20-20) | Pedestrian |
| ESPS 75C | 75 | 137 | 65 | 168 | 20mm (+10-10) | 50mm (+20-30) | Pedestrian |
| ESPS 100C | 100 | 162 | 65 | 193 | 20mm (+10-10) | 65mm (+20-45) | Pedestrian |
| ESPS 150C | 150 | 212 | 65 | 243 | 20mm (+10-10) | 90mm (+20-70) | Pedestrian |

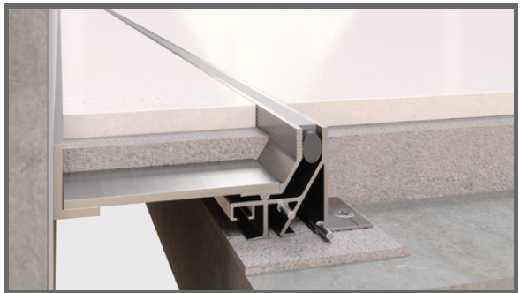

Designed to accommodate horizontal and vertical movements caused by seismic activity.
Made from high-strength aluminum alloy for exceptional durability and long service life.
The low-profile design, coupled with multiple gasket color options, seamlessly enhances aesthetics while
preserving functionality.
Engineered with corrosion-resistant properties, this expansion joint cover is well-suited for indoor and outdoor applications. For outdoor use, a water barrier must be incorporated to ensure optimal performance.
Quick and hassle-free installation process with clear instructions provided.
