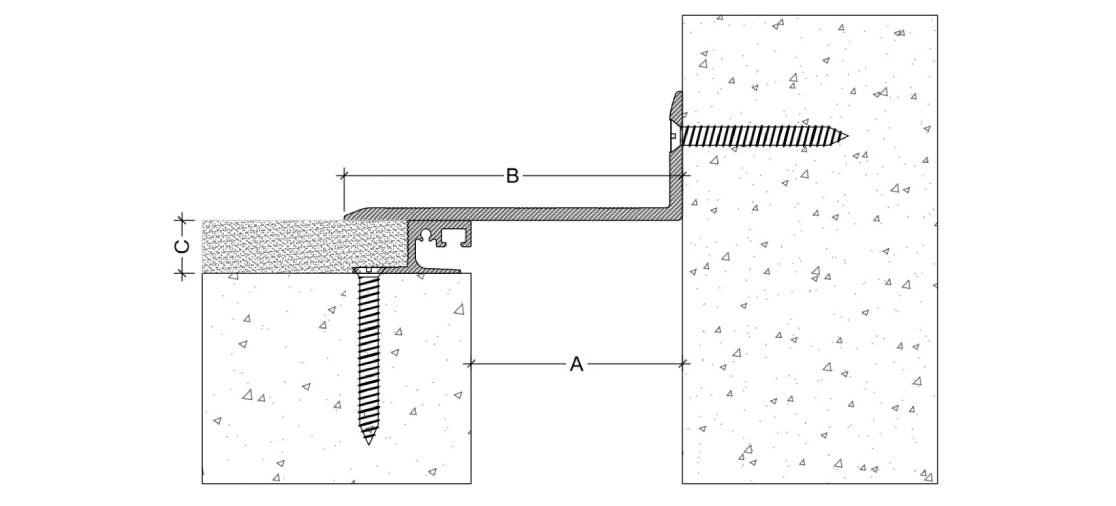

| Code | Gap width A (mm) |
Visible width B (mm) |
Installation height C (mm) |
Thermal movement (mm) |
Siesmic movement (mm) |
Load Capacity |
|---|---|---|---|---|---|---|
| CPS 25C | 25 | 72.5 | 25 | 30mm (+15-15) | 65mm (+40-25) | Private Vehicles |
| CPS 35C | 35 | 82.5 | 25 | 50mm (+25-25) | 75mm (+40-35) | Private Vehicles |
| CPS 50C | 50 | 97.5 | 25 | 80mm (+40-40) | 95mm (+45-50) | Private Vehicles |
| CPS 75C | 75 | 122.5 | 25 | 100mm (+40-60) | 120mm (+45-75) | Private Vehicles |
| CPS 100C | 100 | 160 | 25 | 115mm (+55-60) | 160mm (+60-100) | Private Vehicles |
| CPS 150C | 150 | 205 | 25 | 150mm (+50-100) | 205mm (+55-150) | Private Vehicles |
| CPS 200C | 200 | 255 | 25 | 200mm (+50-150) | 255mm (+55-200) | Private Vehicles |
| CPS 250C | 250 | 305 | 25 | 250mm (+50-200) | 305mm (+55-250) | Private Vehicles |
Designed to accommodate horizontal and vertical movements caused by seismic activity.

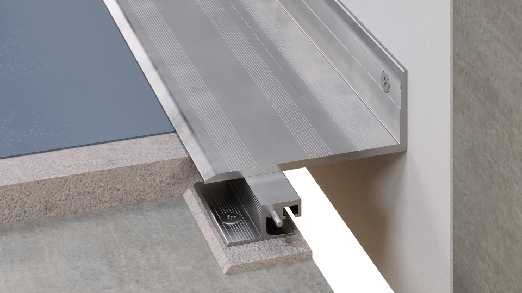

Its sleek aluminum design seamlessly integrates with surrounding structures, maintaining a visually appealing environment.
Quick and hassle-free installation process with clear instructions provided.
Engineered with corrosion-resistant properties, this expansion joint cover is well-suited for indoor and outdoor applications. For outdoor use, a water barrier must be incorporated to ensure optimal performance.
Accommodates different load types, making it a versatile solution for various commercial and industrial settings.
